Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.525 — 1.55 GeV | |
| Ebeam : | 5.754 GeV |
|

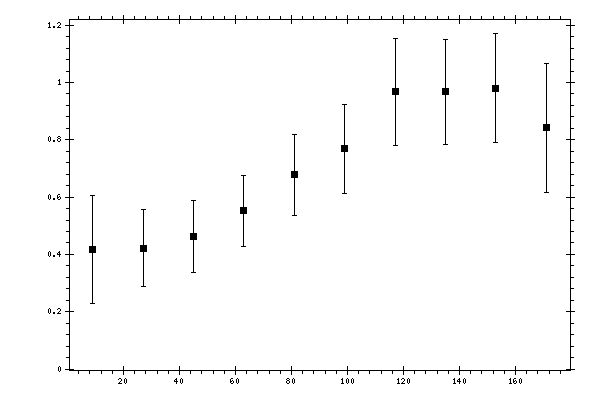

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.4162 | 0.0554 | 0.1802 | 0.1885 |
| 27 | 0.4218 | 0.0482 | 0.1252 | 0.1342 |
| 45 | 0.4635 | 0.0469 | 0.1167 | 0.1258 |
| 63 | 0.5517 | 0.0433 | 0.1154 | 0.1232 |
| 81 | 0.6781 | 0.0633 | 0.1268 | 0.1417 |
| 99 | 0.7684 | 0.0682 | 0.1401 | 0.1559 |
| 117 | 0.9684 | 0.0704 | 0.1729 | 0.1867 |
| 135 | 0.9675 | 0.0636 | 0.1708 | 0.1823 |
| 153 | 0.9801 | 0.0725 | 0.1766 | 0.1909 |
| 171 | 0.8412 | 0.1007 | 0.201 | 0.2248 |
