Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.55 — 1.575 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

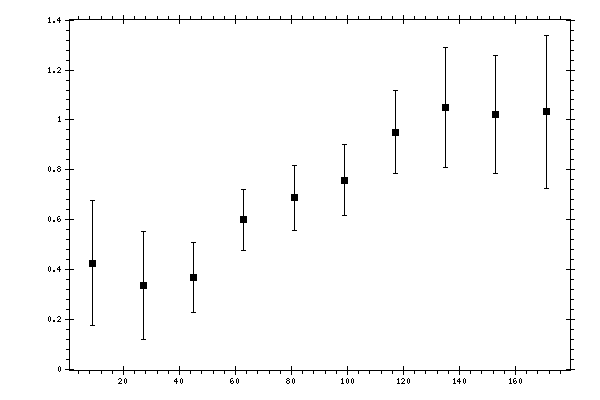

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.4251 | 0.0496 | 0.1739 | 0.25 |
| 27 | 0.3348 | 0.0411 | 0.1045 | 0.2178 |
| 45 | 0.3671 | 0.0314 | 0.0955 | 0.1393 |
| 63 | 0.5994 | 0.0445 | 0.1136 | 0.122 |
| 81 | 0.6865 | 0.0509 | 0.1183 | 0.1288 |
| 99 | 0.7573 | 0.0634 | 0.1279 | 0.1428 |
| 117 | 0.9507 | 0.0595 | 0.1558 | 0.1668 |
| 135 | 1.0509 | 0.0712 | 0.1693 | 0.2408 |
| 153 | 1.0227 | 0.0784 | 0.1662 | 0.2367 |
| 171 | 1.0325 | 0.1198 | 0.2148 | 0.3074 |
