Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|

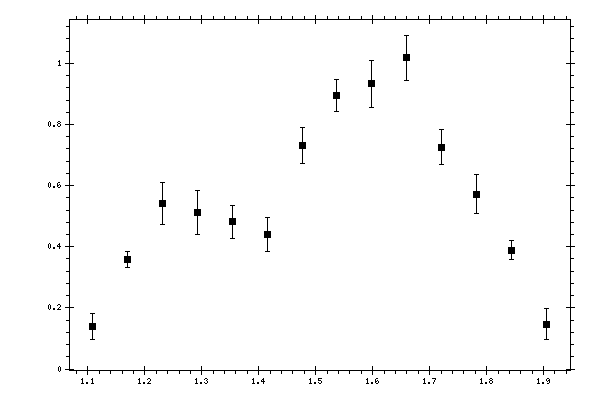

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10847 | 0.139063 | 0.0427078 | 0.01692801 |
| 1.16973 | 0.357309 | 0.0266435 | 0.04098272 |
| 1.23098 | 0.542189 | 0.0691639 | 0.09334115 |
| 1.29224 | 0.512061 | 0.0711696 | 0.08817419 |
| 1.3535 | 0.481278 | 0.0537913 | 0.12606283 |
| 1.41475 | 0.440915 | 0.0561995 | 0.1155463 |
| 1.47601 | 0.73183 | 0.0582533 | 0.07708579 |
| 1.53726 | 0.895358 | 0.0526656 | 0.094016 |
| 1.59852 | 0.933795 | 0.0769957 | 0.10589061 |
| 1.65978 | 1.01865 | 0.0737189 | 0.11529031 |
| 1.72103 | 0.726319 | 0.0561179 | 0.07607366 |
| 1.78229 | 0.572419 | 0.0632132 | 0.06369921 |
| 1.84355 | 0.388066 | 0.0309591 | 0.05132352 |
| 1.9048 | 0.147077 | 0.0502885 | 0.03215176 |
