Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

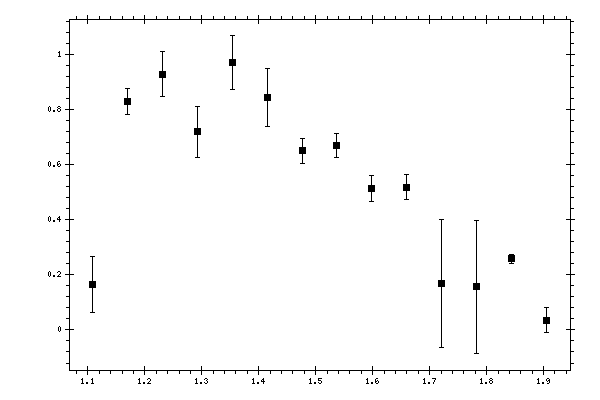

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10847 | 0.164708 | 0.102485 | 0.06435512 |
| 1.16973 | 0.830657 | 0.0456357 | 0.10512915 |
| 1.23098 | 0.929948 | 0.0820578 | 0.13065124 |
| 1.29224 | 0.720942 | 0.0931964 | 0.10239564 |
| 1.3535 | 0.971251 | 0.0979049 | 0.10231027 |
| 1.41475 | 0.844587 | 0.10499 | 0.08901575 |
| 1.47601 | 0.651201 | 0.0441878 | 0.07711247 |
| 1.53726 | 0.671456 | 0.0435162 | 0.07950185 |
| 1.59852 | 0.514005 | 0.04711 | 0.05984761 |
| 1.65978 | 0.519496 | 0.0468604 | 0.06048675 |
| 1.72103 | 0.167846 | 0.232448 | 0.20726381 |
| 1.78229 | 0.156554 | 0.240685 | 0.19332083 |
| 1.84355 | 0.258339 | 0.0167114 | 0.02916104 |
| 1.9048 | 0.0358484 | 0.0448614 | 0.00427074 |
