Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

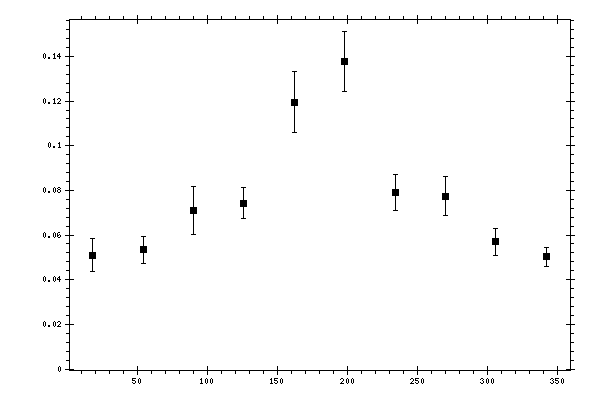

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0510158 | 0.0074945 | 0.00841783 |
| 54 | 0.0533117 | 0.00623588 | 0.00741778 |
| 90 | 0.0708214 | 0.0107626 | 0.01400571 |
| 126 | 0.074258 | 0.00700089 | 0.0197456 |
| 162 | 0.119453 | 0.0136261 | 0.0113157 |
| 198 | 0.13762 | 0.0133215 | 0.01410658 |
| 234 | 0.0790066 | 0.00802954 | 0.01231235 |
| 270 | 0.0773291 | 0.00873515 | 0.00832289 |
| 306 | 0.056968 | 0.00618223 | 0.00825455 |
| 342 | 0.0502226 | 0.00426789 | 0.00716825 |
