Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

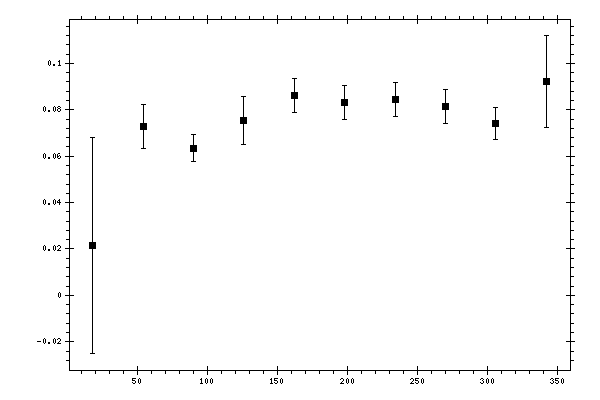

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0214809 | 0.0463477 | 0.03694094 |
| 54 | 0.0728228 | 0.0093763 | 0.00857746 |
| 90 | 0.063388 | 0.00580822 | 0.00913598 |
| 126 | 0.0753736 | 0.0101764 | 0.00796624 |
| 162 | 0.0861126 | 0.00733121 | 0.0088851 |
| 198 | 0.0830549 | 0.00719961 | 0.0113522 |
| 234 | 0.0842702 | 0.00733306 | 0.01033287 |
| 270 | 0.0813787 | 0.0074944 | 0.00879023 |
| 306 | 0.0741047 | 0.00684075 | 0.00853061 |
| 342 | 0.0921354 | 0.0196901 | 0.01231226 |
