Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

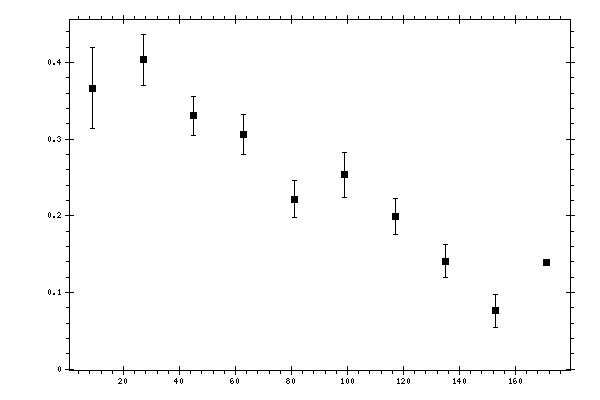

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.36673 | 0.0527953 | 0.03591392 |
| 27 | 0.403584 | 0.0329285 | 0.0497093 |
| 45 | 0.330371 | 0.0249039 | 0.04369468 |
| 63 | 0.306224 | 0.0261828 | 0.02870495 |
| 81 | 0.221625 | 0.0240479 | 0.02614221 |
| 99 | 0.253603 | 0.0294493 | 0.02901968 |
| 117 | 0.198914 | 0.0234195 | 0.05491494 |
| 135 | 0.140956 | 0.0212459 | 0.02226113 |
| 153 | 0.0757476 | 0.0213657 | 0.02755011 |
| 171 | 0.138697 | 0.00015056 | 0.07064258 |
