Parameter (X axis): W, GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: σ, mcbn
Cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|
|

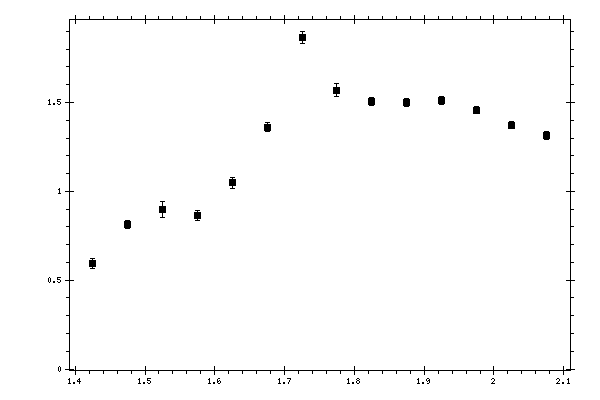

Observable quantity measured (Y axis): σ, mcbn
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
W,
GeV |
σ,
mcbn |
Stat. error,
mcbn |
Syst. error,
mcbn |
|---|---|---|---|
| 1.425 | 0.594541 | 0.029283 | 0.068532 |
| 1.475 | 0.813258 | 0.021255 | 0.08496 |
| 1.525 | 0.895611 | 0.045058 | 0.09733 |
| 1.575 | 0.865649 | 0.028081 | 0.085475 |
| 1.625 | 1.04811 | 0.032415 | 0.095354 |
| 1.675 | 1.36162 | 0.025039 | 0.12799 |
| 1.725 | 1.86445 | 0.033092 | 0.177478 |
| 1.775 | 1.56805 | 0.036823 | 0.144751 |
| 1.825 | 1.5052 | 0.023955 | 0.138242 |
| 1.875 | 1.4986 | 0.021474 | 0.133186 |
| 1.925 | 1.51025 | 0.022517 | 0.128312 |
| 1.975 | 1.45666 | 0.020545 | 0.126428 |
| 2.025 | 1.373 | 0.02102 | 0.116371 |
| 2.075 | 1.3147 | 0.022642 | 0.112309 |
