Parameter (X axis): W, GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: σ, mcbn
Cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|
|
Observable quantity measured (Y axis): σ, mcbn
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.

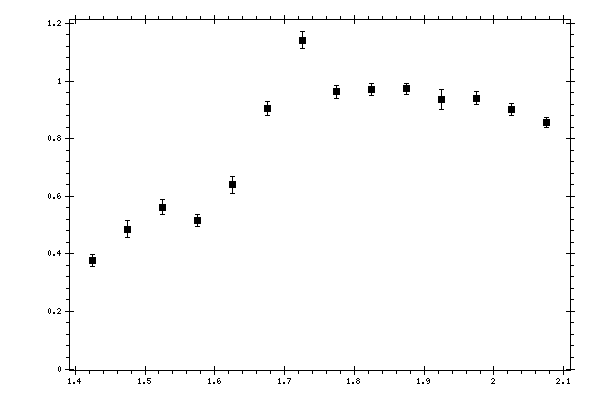

Measured data:
|
W,
GeV |
σ,
mcbn |
Stat. error,
mcbn |
Syst. error,
mcbn |
|---|---|---|---|
| 1.425 | 0.377313 | 0.021965 | 0.049957 |
| 1.475 | 0.485699 | 0.028945 | 0.06178 |
| 1.525 | 0.561928 | 0.026537 | 0.058547 |
| 1.575 | 0.514784 | 0.021501 | 0.050195 |
| 1.625 | 0.639715 | 0.030093 | 0.060476 |
| 1.675 | 0.90449 | 0.024011 | 0.083605 |
| 1.725 | 1.14172 | 0.029405 | 0.107217 |
| 1.775 | 0.962429 | 0.022496 | 0.08781 |
| 1.825 | 0.969932 | 0.020298 | 0.087355 |
| 1.875 | 0.972616 | 0.018893 | 0.08334 |
| 1.925 | 0.934699 | 0.034246 | 0.081119 |
| 1.975 | 0.94027 | 0.022106 | 0.079261 |
| 2.025 | 0.900981 | 0.020758 | 0.078715 |
| 2.075 | 0.855117 | 0.017781 | 0.07352 |
