Parameter (X axis): W, GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: σ, mcbn
Cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|
|
Observable quantity measured (Y axis): σ, mcbn
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.

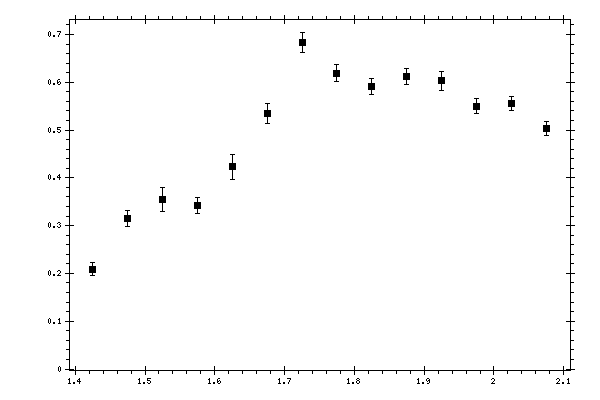

Measured data:
|
W,
GeV |
σ,
mcbn |
Stat. error,
mcbn |
Syst. error,
mcbn |
|---|---|---|---|
| 1.425 | 0.208915 | 0.013513 | 0.025613 |
| 1.475 | 0.315474 | 0.016917 | 0.032685 |
| 1.525 | 0.354296 | 0.02484 | 0.038372 |
| 1.575 | 0.341839 | 0.017399 | 0.033792 |
| 1.625 | 0.423017 | 0.026029 | 0.04596 |
| 1.675 | 0.534649 | 0.021278 | 0.050524 |
| 1.725 | 0.683961 | 0.020969 | 0.066167 |
| 1.775 | 0.619273 | 0.017297 | 0.060702 |
| 1.825 | 0.591189 | 0.016092 | 0.057948 |
| 1.875 | 0.611528 | 0.016747 | 0.057432 |
| 1.925 | 0.603645 | 0.019832 | 0.055867 |
| 1.975 | 0.549879 | 0.015511 | 0.051816 |
| 2.025 | 0.555563 | 0.014032 | 0.049386 |
| 2.075 | 0.50306 | 0.014237 | 0.049068 |
