Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|

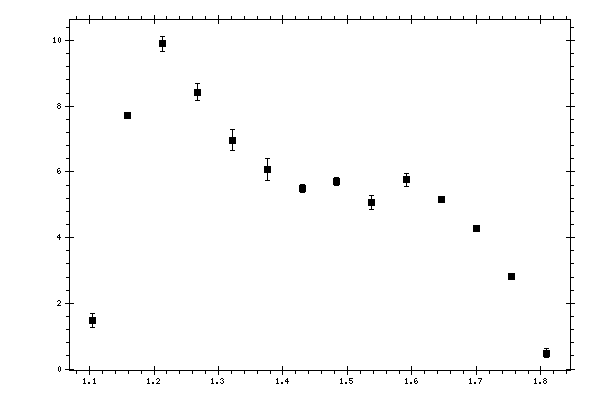

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.1049 | 1.4763 | 0.216744 | 0.80231047 |
| 1.15901 | 7.70892 | 0.09485 | 1.17738718 |
| 1.21313 | 9.89594 | 0.239147 | 0.93018036 |
| 1.26724 | 8.41836 | 0.259286 | 0.8344868 |
| 1.32135 | 6.96596 | 0.316256 | 0.58130163 |
| 1.37547 | 6.06478 | 0.338939 | 0.50814121 |
| 1.42958 | 5.48499 | 0.124216 | 0.4192455 |
| 1.48369 | 5.71243 | 0.121718 | 0.4366037 |
| 1.53781 | 5.05959 | 0.212426 | 0.40651534 |
| 1.59192 | 5.75539 | 0.199172 | 0.46237522 |
| 1.64603 | 5.15013 | 0.0851684 | 0.3794417 |
| 1.70015 | 4.27042 | 0.0935302 | 0.3147484 |
| 1.75426 | 2.82993 | 0.0562515 | 0.21989902 |
| 1.80837 | 0.481756 | 0.136335 | 0.03863192 |
