Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

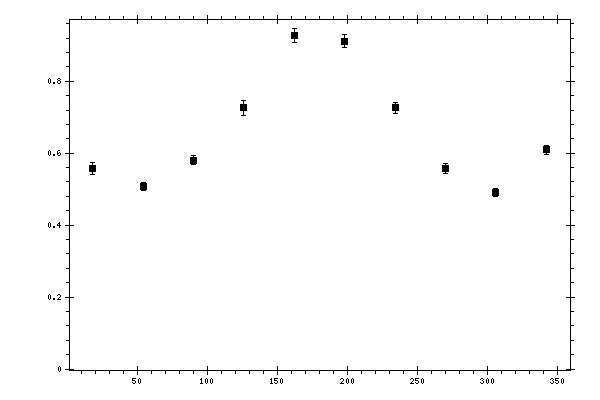

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.557222 | 0.0166383 | 0.06444523 |
| 54 | 0.507422 | 0.0109781 | 0.04892673 |
| 90 | 0.580825 | 0.0128831 | 0.04789417 |
| 126 | 0.726655 | 0.0207969 | 0.05873497 |
| 162 | 0.92765 | 0.0193517 | 0.06798983 |
| 198 | 0.911307 | 0.0182092 | 0.06724203 |
| 234 | 0.725761 | 0.0143776 | 0.05554352 |
| 270 | 0.556672 | 0.0134975 | 0.04890516 |
| 306 | 0.49044 | 0.0117256 | 0.04911012 |
| 342 | 0.608974 | 0.0127196 | 0.06669114 |
