Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

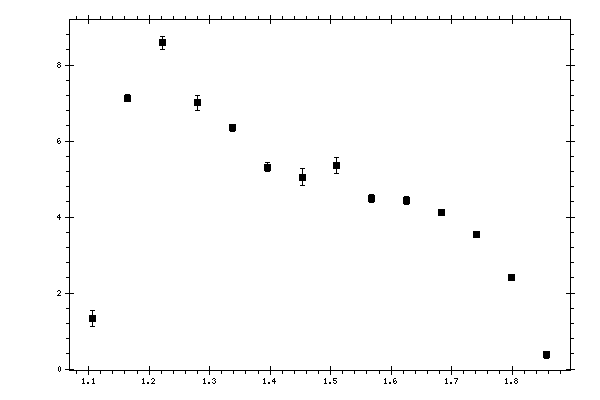

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10668 | 1.33604 | 0.210085 | 0.77100834 |
| 1.16437 | 7.13243 | 0.0909254 | 1.06524812 |
| 1.22205 | 8.58429 | 0.179091 | 0.76967783 |
| 1.27974 | 7.00525 | 0.19825 | 0.66854529 |
| 1.33742 | 6.34534 | 0.100819 | 0.4680432 |
| 1.39511 | 5.31551 | 0.110153 | 0.39384796 |
| 1.45279 | 5.05235 | 0.213052 | 0.37608574 |
| 1.51048 | 5.35714 | 0.206903 | 0.39875631 |
| 1.56816 | 4.4973 | 0.101392 | 0.33932186 |
| 1.62585 | 4.4415 | 0.102027 | 0.33511592 |
| 1.68353 | 4.11379 | 0.0733366 | 0.2960937 |
| 1.74122 | 3.5392 | 0.0790659 | 0.25477251 |
| 1.7989 | 2.40046 | 0.0394532 | 0.22218675 |
| 1.85659 | 0.36918 | 0.100603 | 0.03511125 |
