Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

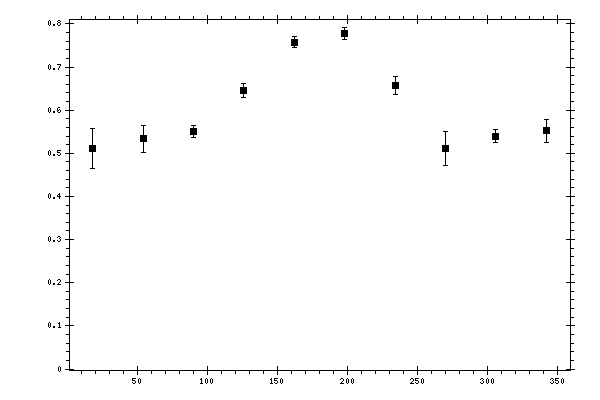

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.51138 | 0.0463548 | 0.06476545 |
| 54 | 0.533489 | 0.0312245 | 0.04816848 |
| 90 | 0.551242 | 0.0138471 | 0.04476638 |
| 126 | 0.645751 | 0.0167104 | 0.05265963 |
| 162 | 0.757861 | 0.0136141 | 0.05675086 |
| 198 | 0.777763 | 0.0149118 | 0.0569181 |
| 234 | 0.65752 | 0.0201869 | 0.05480543 |
| 270 | 0.510844 | 0.0390803 | 0.1023218 |
| 306 | 0.539979 | 0.015365 | 0.04747965 |
| 342 | 0.552172 | 0.0270733 | 0.054415 |
