Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

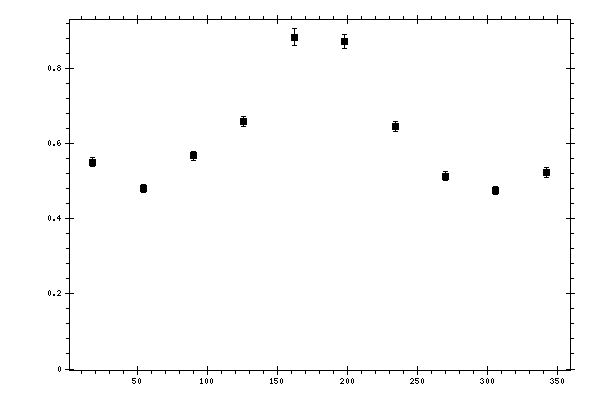

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.550085 | 0.0119672 | 0.05913948 |
| 54 | 0.479221 | 0.0109888 | 0.04641491 |
| 90 | 0.567475 | 0.0118758 | 0.04437881 |
| 126 | 0.658434 | 0.0141134 | 0.04928691 |
| 162 | 0.882587 | 0.0232457 | 0.06639385 |
| 198 | 0.869994 | 0.0186196 | 0.06497264 |
| 234 | 0.646025 | 0.0132484 | 0.05117359 |
| 270 | 0.512833 | 0.0114642 | 0.04206132 |
| 306 | 0.47338 | 0.0106412 | 0.04415985 |
| 342 | 0.523579 | 0.0130577 | 0.05992586 |
