Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

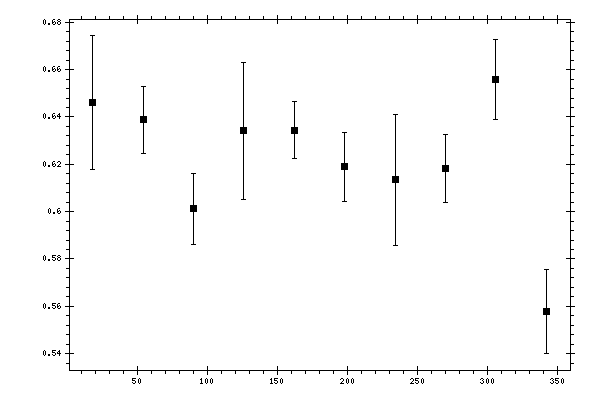

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.646028 | 0.0282422 | 0.06008193 |
| 54 | 0.638815 | 0.0140429 | 0.05065964 |
| 90 | 0.60115 | 0.0151741 | 0.04673667 |
| 126 | 0.634185 | 0.0290381 | 0.05172834 |
| 162 | 0.634453 | 0.0121732 | 0.05294028 |
| 198 | 0.618873 | 0.0144039 | 0.0501311 |
| 234 | 0.613375 | 0.0277473 | 0.05006733 |
| 270 | 0.618093 | 0.0143597 | 0.04621445 |
| 306 | 0.655943 | 0.0168983 | 0.05615438 |
| 342 | 0.557793 | 0.0175782 | 0.06312438 |
