Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

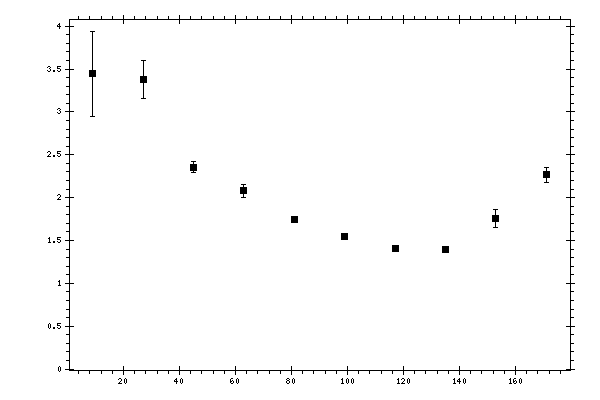

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 3.44445 | 0.499742 | 1.25818301 |
| 27 | 3.37554 | 0.22242 | 0.36333779 |
| 45 | 2.35585 | 0.0626233 | 0.19032571 |
| 63 | 2.07801 | 0.0716774 | 0.152329 |
| 81 | 1.74826 | 0.0322523 | 0.13312153 |
| 99 | 1.54632 | 0.0349808 | 0.11650851 |
| 117 | 1.40966 | 0.0326176 | 0.10544151 |
| 135 | 1.39341 | 0.0282712 | 0.11655894 |
| 153 | 1.75336 | 0.105977 | 0.19504836 |
| 171 | 2.26529 | 0.0852949 | 0.45534206 |
