Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

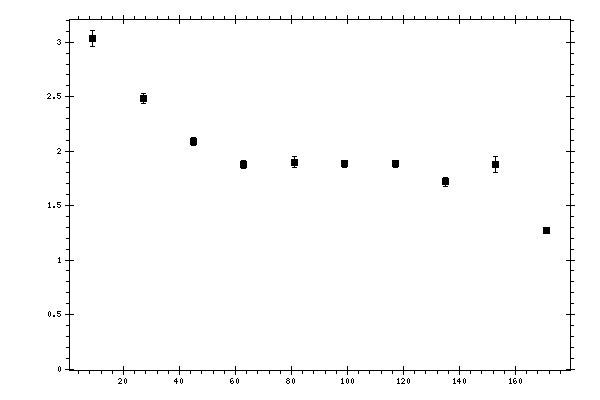

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 3.03823 | 0.0733973 | 0.27988009 |
| 27 | 2.48569 | 0.045842 | 0.21984544 |
| 45 | 2.08878 | 0.0343391 | 0.16993532 |
| 63 | 1.87847 | 0.0383385 | 0.15177366 |
| 81 | 1.89992 | 0.0475921 | 0.14443872 |
| 99 | 1.8843 | 0.0323218 | 0.13961101 |
| 117 | 1.88432 | 0.0338504 | 0.15320372 |
| 135 | 1.71994 | 0.0411551 | 0.1508042 |
| 153 | 1.8778 | 0.0747796 | 0.21123719 |
| 171 | 1.26839 | 0.0138244 | 0.73483213 |
