Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

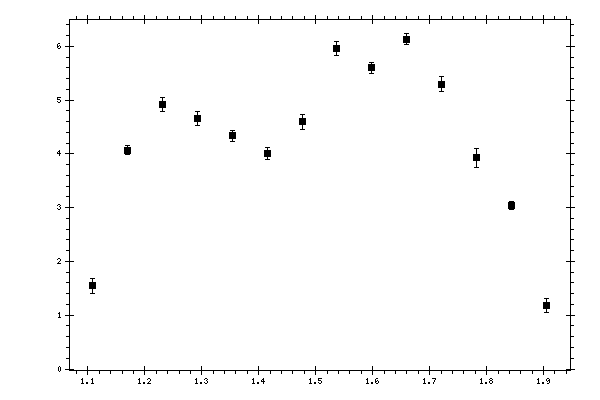

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10847 | 1.55223 | 0.139594 | 0.12647261 |
| 1.16973 | 4.07296 | 0.0861767 | 0.32788977 |
| 1.23098 | 4.91853 | 0.129013 | 0.37423871 |
| 1.29224 | 4.66091 | 0.13253 | 0.35480931 |
| 1.3535 | 4.33498 | 0.0997973 | 0.31564517 |
| 1.41475 | 4.00928 | 0.103772 | 0.29213132 |
| 1.47601 | 4.59534 | 0.143587 | 0.32748611 |
| 1.53726 | 5.96187 | 0.126062 | 0.4238033 |
| 1.59852 | 5.60608 | 0.100914 | 0.41030004 |
| 1.65978 | 6.13736 | 0.0964473 | 0.44771077 |
| 1.72103 | 5.30151 | 0.147309 | 0.44779487 |
| 1.78229 | 3.92544 | 0.171192 | 0.36702848 |
| 1.84355 | 3.04491 | 0.07676 | 0.44314338 |
| 1.9048 | 1.17936 | 0.123338 | 0.35413601 |
