Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcbn/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|

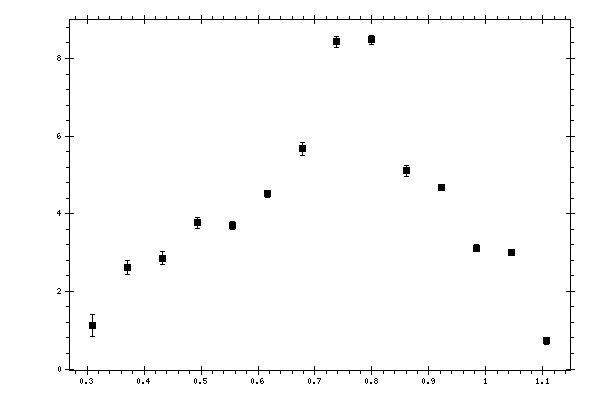

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcbn/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 0.309768 | 1.12414 | 0.278369 | 0.17655835 |
| 0.371024 | 2.62205 | 0.182268 | 0.29962408 |
| 0.432281 | 2.85216 | 0.171966 | 0.3577032 |
| 0.493537 | 3.76315 | 0.149711 | 0.40978584 |
| 0.554793 | 3.68894 | 0.100222 | 0.33848857 |
| 0.61605 | 4.52084 | 0.0905327 | 0.38545536 |
| 0.677306 | 5.67237 | 0.171613 | 0.44344397 |
| 0.738562 | 8.43475 | 0.140733 | 0.63619558 |
| 0.799818 | 8.47719 | 0.11673 | 0.58745349 |
| 0.861075 | 5.10344 | 0.150445 | 0.36167406 |
| 0.922331 | 4.67767 | 0.0745379 | 0.35106679 |
| 0.983587 | 3.11418 | 0.0913524 | 0.23420865 |
| 1.04484 | 3.0028 | 0.0457082 | 0.22794653 |
| 1.1061 | 0.729702 | 0.0927224 | 0.05622687 |
