Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

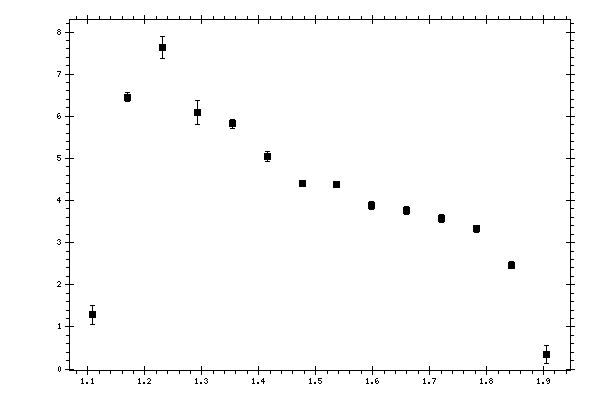

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10847 | 1.28855 | 0.228275 | 0.72292226 |
| 1.16973 | 6.45368 | 0.102001 | 0.93590325 |
| 1.23098 | 7.63755 | 0.259504 | 0.6479938 |
| 1.29224 | 6.08714 | 0.290679 | 0.55046023 |
| 1.3535 | 5.81989 | 0.106725 | 0.41092984 |
| 1.41475 | 5.04984 | 0.114573 | 0.35731386 |
| 1.47601 | 4.40067 | 0.0691329 | 0.32863647 |
| 1.53726 | 4.37612 | 0.0693265 | 0.32680226 |
| 1.59852 | 3.88732 | 0.0921818 | 0.30061323 |
| 1.65978 | 3.76643 | 0.0936494 | 0.29126809 |
| 1.72103 | 3.57349 | 0.0840515 | 0.26797699 |
| 1.78229 | 3.32493 | 0.0871366 | 0.24934786 |
| 1.84355 | 2.46337 | 0.0788853 | 0.23696142 |
| 1.9048 | 0.346912 | 0.210209 | 0.03393352 |
