Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|

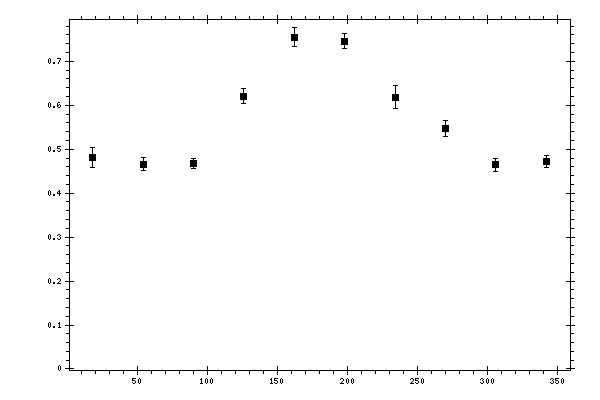

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.481591 | 0.0221622 | 0.0526337 |
| 54 | 0.465485 | 0.0149235 | 0.04284859 |
| 90 | 0.467168 | 0.0121329 | 0.03868213 |
| 126 | 0.620473 | 0.0166021 | 0.04789159 |
| 162 | 0.755119 | 0.0224545 | 0.06455767 |
| 198 | 0.745986 | 0.0163967 | 0.05501642 |
| 234 | 0.618383 | 0.0260313 | 0.0516214 |
| 270 | 0.547005 | 0.0179432 | 0.04410981 |
| 306 | 0.464347 | 0.0145959 | 0.04397709 |
| 342 | 0.471989 | 0.0146099 | 0.04989103 |
