Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|

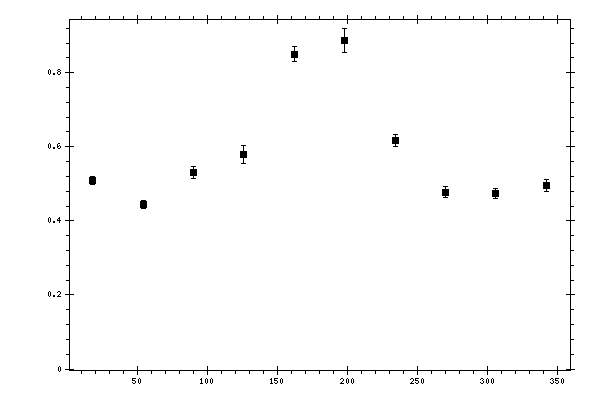

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.508722 | 0.0113202 | 0.05266603 |
| 54 | 0.444315 | 0.0115682 | 0.03951308 |
| 90 | 0.530048 | 0.0159625 | 0.0436424 |
| 126 | 0.57841 | 0.0237601 | 0.04494709 |
| 162 | 0.849938 | 0.0204197 | 0.06152538 |
| 198 | 0.886473 | 0.0314042 | 0.06786539 |
| 234 | 0.616504 | 0.0161547 | 0.04682052 |
| 270 | 0.477037 | 0.0146387 | 0.03932729 |
| 306 | 0.473847 | 0.013625 | 0.04104884 |
| 342 | 0.495186 | 0.0153228 | 0.05318382 |
