Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

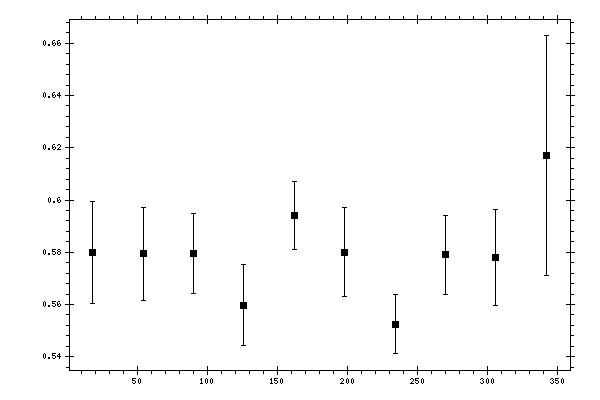

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.580055 | 0.0194998 | 0.05601741 |
| 54 | 0.579375 | 0.0179553 | 0.04730087 |
| 90 | 0.57945 | 0.0154153 | 0.0449144 |
| 126 | 0.559723 | 0.0155257 | 0.04199004 |
| 162 | 0.594157 | 0.0131116 | 0.04714085 |
| 198 | 0.579968 | 0.0170471 | 0.04847628 |
| 234 | 0.55252 | 0.011127 | 0.04273977 |
| 270 | 0.578997 | 0.015107 | 0.0443942 |
| 306 | 0.578063 | 0.0184625 | 0.04577871 |
| 342 | 0.617058 | 0.0457822 | 0.06898266 |
