Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

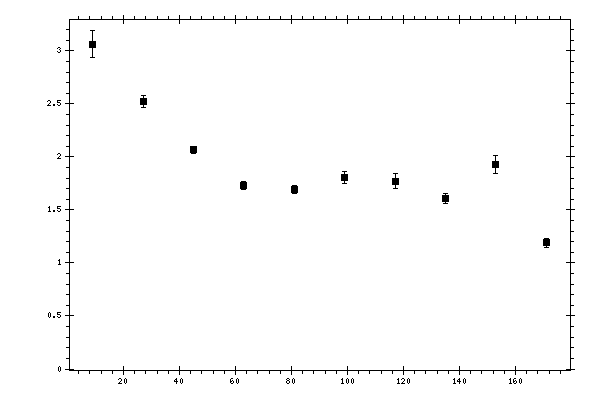

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 3.06202 | 0.126871 | 0.28754793 |
| 27 | 2.51935 | 0.0571861 | 0.20968885 |
| 45 | 2.06854 | 0.0325263 | 0.16842075 |
| 63 | 1.73267 | 0.0395191 | 0.14116889 |
| 81 | 1.69304 | 0.0343713 | 0.12313868 |
| 99 | 1.80929 | 0.0571155 | 0.12970245 |
| 117 | 1.77133 | 0.0719157 | 0.15444169 |
| 135 | 1.61004 | 0.0467467 | 0.13933447 |
| 153 | 1.92717 | 0.0861981 | 0.22174078 |
| 171 | 1.19045 | 0.0436632 | 0.63052319 |
