Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

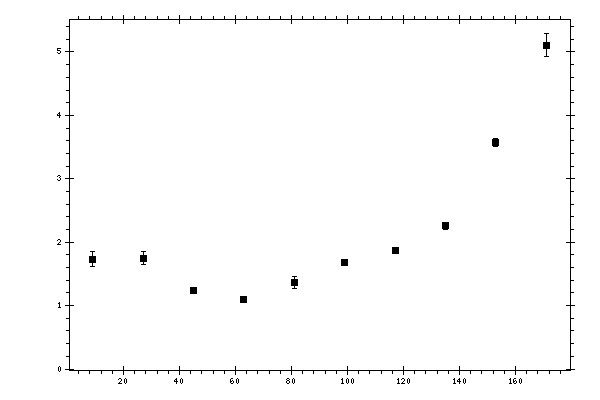

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.72992 | 0.120373 | 0.28259718 |
| 27 | 1.74817 | 0.106677 | 0.21632125 |
| 45 | 1.23248 | 0.0384687 | 0.11076515 |
| 63 | 1.09513 | 0.0308672 | 0.09095685 |
| 81 | 1.37129 | 0.0939862 | 0.13665178 |
| 99 | 1.67626 | 0.0398208 | 0.13076592 |
| 117 | 1.86604 | 0.0437865 | 0.14188881 |
| 135 | 2.25656 | 0.0513378 | 0.17593176 |
| 153 | 3.5702 | 0.06636 | 0.27644578 |
| 171 | 5.10958 | 0.183207 | 0.41089201 |
