Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

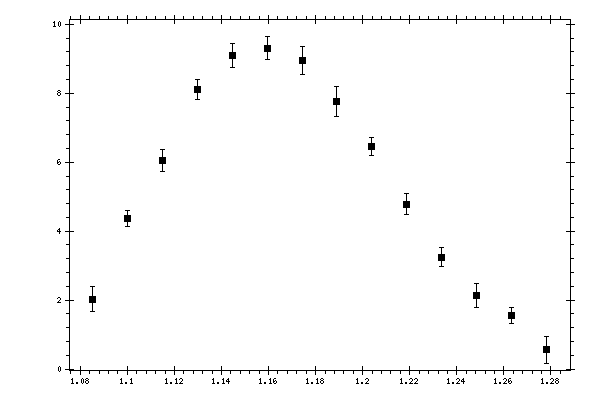

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08526 | 2.02745 | 0.354975 | 0.31457031 |
| 1.10008 | 4.36573 | 0.241905 | 0.49536837 |
| 1.11491 | 6.05004 | 0.326556 | 0.87350873 |
| 1.12974 | 8.11233 | 0.28201 | 0.98675655 |
| 1.14457 | 9.10093 | 0.347093 | 1.22171812 |
| 1.15939 | 9.31033 | 0.343168 | 1.23253887 |
| 1.17422 | 8.94271 | 0.408393 | 1.21662468 |
| 1.18905 | 7.76832 | 0.438177 | 1.15101056 |
| 1.20388 | 6.45781 | 0.264282 | 1.10092921 |
| 1.21871 | 4.78246 | 0.307103 | 1.01706875 |
| 1.23353 | 3.24544 | 0.285226 | 0.67952543 |
| 1.24836 | 2.12469 | 0.352516 | 0.61584943 |
| 1.26319 | 1.54265 | 0.231141 | 0.38646771 |
| 1.27802 | 0.557763 | 0.384403 | 0.29613089 |
