Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

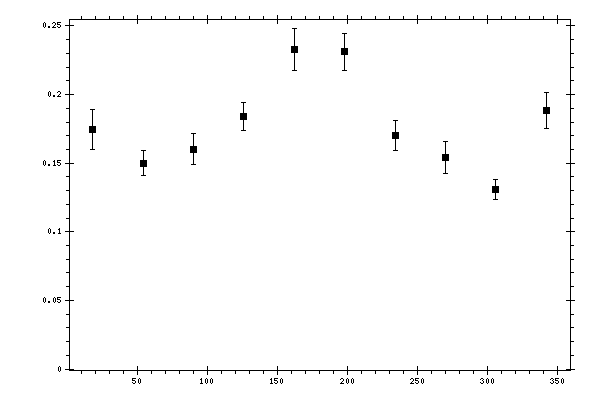

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.174664 | 0.0147422 | 0.02761126 |
| 54 | 0.150005 | 0.00905675 | 0.02410588 |
| 90 | 0.160027 | 0.0112684 | 0.02573542 |
| 126 | 0.183762 | 0.0101283 | 0.02903046 |
| 162 | 0.232738 | 0.015384 | 0.03346636 |
| 198 | 0.231067 | 0.0133012 | 0.03270764 |
| 234 | 0.170413 | 0.0110401 | 0.03208862 |
| 270 | 0.154284 | 0.0117029 | 0.02597693 |
| 306 | 0.130718 | 0.00741964 | 0.0233987 |
| 342 | 0.188081 | 0.0131338 | 0.02568211 |
