Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|

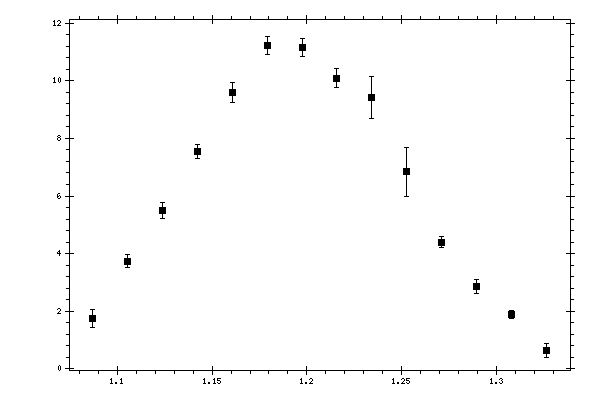

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08704 | 1.75585 | 0.317917 | 0.20133707 |
| 1.10544 | 3.74046 | 0.217818 | 0.36790078 |
| 1.12384 | 5.4919 | 0.285899 | 0.59383332 |
| 1.14224 | 7.55798 | 0.243709 | 0.7173949 |
| 1.16064 | 9.59834 | 0.344561 | 1.22325818 |
| 1.17904 | 11.2287 | 0.318566 | 1.30676165 |
| 1.19744 | 11.1547 | 0.311183 | 1.41537425 |
| 1.21584 | 10.0872 | 0.327235 | 1.35914032 |
| 1.23423 | 9.42269 | 0.729225 | 1.36604428 |
| 1.25263 | 6.84135 | 0.855811 | 1.17898911 |
| 1.27103 | 4.39024 | 0.189701 | 0.87517069 |
| 1.28943 | 2.85174 | 0.235374 | 0.79900176 |
| 1.30783 | 1.88431 | 0.137874 | 0.44223897 |
| 1.32623 | 0.639415 | 0.236683 | 0.38735001 |
