Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|

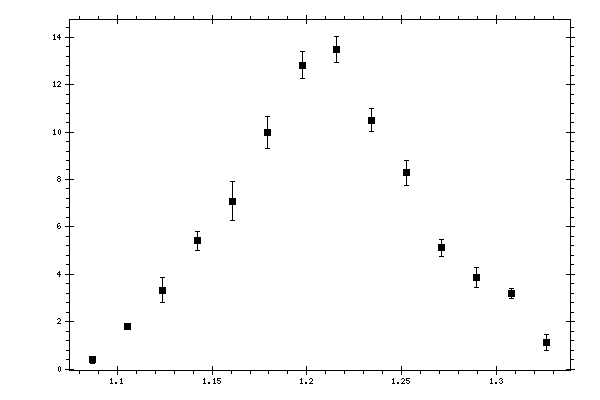

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08704 | 0.384952 | 0.16068 | 0.31548534 |
| 1.10544 | 1.79849 | 0.0743383 | 0.40158021 |
| 1.12384 | 3.32962 | 0.516035 | 0.62113393 |
| 1.14224 | 5.40726 | 0.404937 | 0.74981733 |
| 1.16064 | 7.08041 | 0.816287 | 0.90715019 |
| 1.17904 | 9.97505 | 0.687725 | 1.14924563 |
| 1.19744 | 12.8214 | 0.567942 | 1.08799524 |
| 1.21584 | 13.4852 | 0.553787 | 1.12911105 |
| 1.23423 | 10.5081 | 0.46794 | 0.88571421 |
| 1.25263 | 8.27964 | 0.527166 | 0.74225945 |
| 1.27103 | 5.11441 | 0.360168 | 0.4934869 |
| 1.28943 | 3.85414 | 0.414897 | 0.40204055 |
| 1.30783 | 3.19103 | 0.202223 | 0.26780499 |
| 1.32623 | 1.11621 | 0.34192 | 0.12154253 |
