Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

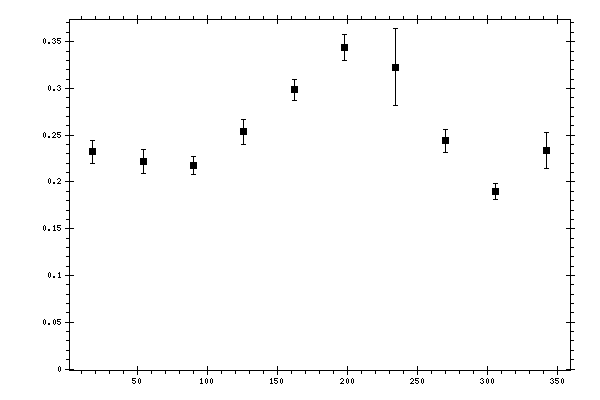

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.232046 | 0.0125994 | 0.03073981 |
| 54 | 0.222028 | 0.0124988 | 0.03168432 |
| 90 | 0.217412 | 0.00968869 | 0.03199435 |
| 126 | 0.253493 | 0.0132246 | 0.03667449 |
| 162 | 0.298522 | 0.0112351 | 0.04285852 |
| 198 | 0.34381 | 0.0140372 | 0.04435746 |
| 234 | 0.322842 | 0.0411815 | 0.04313995 |
| 270 | 0.244176 | 0.0124127 | 0.03435379 |
| 306 | 0.190036 | 0.00873712 | 0.02912196 |
| 342 | 0.23372 | 0.0189551 | 0.03469812 |
