Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|

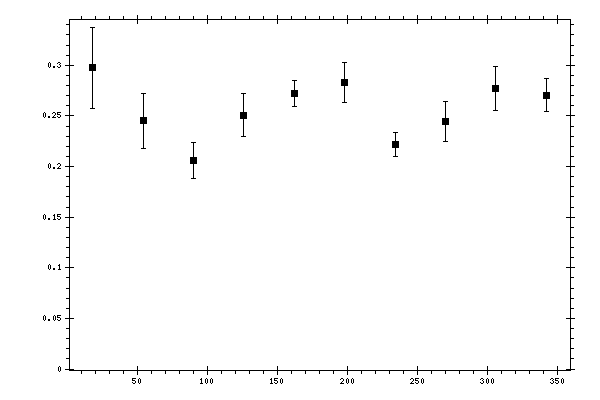

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.29742 | 0.0398496 | 0.05604271 |
| 54 | 0.24507 | 0.0269142 | 0.03135107 |
| 90 | 0.205824 | 0.0174666 | 0.0219718 |
| 126 | 0.25086 | 0.020872 | 0.0245907 |
| 162 | 0.27191 | 0.0129809 | 0.02117585 |
| 198 | 0.283 | 0.0201843 | 0.02326818 |
| 234 | 0.221899 | 0.0116697 | 0.01726333 |
| 270 | 0.244329 | 0.0198731 | 0.01933986 |
| 306 | 0.277253 | 0.0215398 | 0.03031712 |
| 342 | 0.2706 | 0.0165293 | 0.05179429 |
