Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

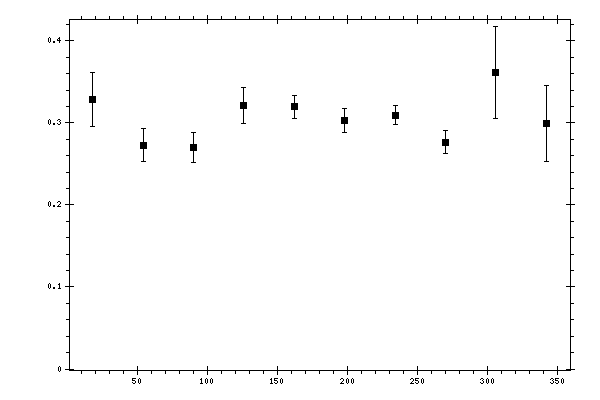

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.328384 | 0.032674 | 0.08798173 |
| 54 | 0.27267 | 0.0198687 | 0.03314691 |
| 90 | 0.270265 | 0.0182573 | 0.0381089 |
| 126 | 0.320759 | 0.0220632 | 0.02808628 |
| 162 | 0.319452 | 0.0135304 | 0.02832333 |
| 198 | 0.303325 | 0.0147128 | 0.02429442 |
| 234 | 0.309554 | 0.0119651 | 0.02794062 |
| 270 | 0.276614 | 0.0145325 | 0.02287019 |
| 306 | 0.361276 | 0.0558484 | 0.03999166 |
| 342 | 0.299359 | 0.046725 | 0.05182212 |
