Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

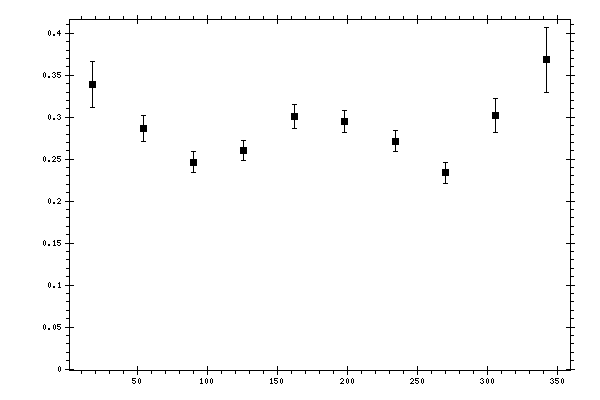

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.339075 | 0.0271651 | 0.06028737 |
| 54 | 0.286494 | 0.0154854 | 0.03017626 |
| 90 | 0.246429 | 0.0124818 | 0.02055036 |
| 126 | 0.260214 | 0.0116244 | 0.02208988 |
| 162 | 0.301351 | 0.0143063 | 0.02697943 |
| 198 | 0.294958 | 0.0132618 | 0.0254212 |
| 234 | 0.271643 | 0.012052 | 0.02200452 |
| 270 | 0.233844 | 0.012545 | 0.03803576 |
| 306 | 0.301936 | 0.020516 | 0.03225794 |
| 342 | 0.368221 | 0.038347 | 0.05596393 |
