Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

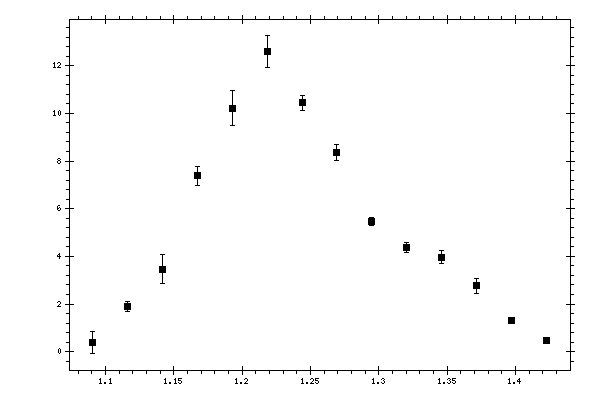

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09061 | 0.400843 | 0.460459 | 0.22442209 |
| 1.11615 | 1.90255 | 0.211354 | 0.59012562 |
| 1.1417 | 3.46205 | 0.608876 | 1.37494548 |
| 1.16724 | 7.37148 | 0.417271 | 2.79143111 |
| 1.19278 | 10.2164 | 0.745935 | 1.05100034 |
| 1.21832 | 12.5772 | 0.672291 | 1.2336401 |
| 1.24386 | 10.4357 | 0.30204 | 0.8591193 |
| 1.26941 | 8.36226 | 0.337415 | 0.70635515 |
| 1.29495 | 5.45884 | 0.182918 | 0.45944804 |
| 1.32049 | 4.37839 | 0.204244 | 0.3763372 |
| 1.34603 | 3.96486 | 0.267648 | 0.34455205 |
| 1.37157 | 2.76644 | 0.320419 | 0.2464699 |
| 1.39712 | 1.30444 | 0.0818621 | 0.13211515 |
| 1.42266 | 0.473254 | 0.135909 | 0.05315186 |
