Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

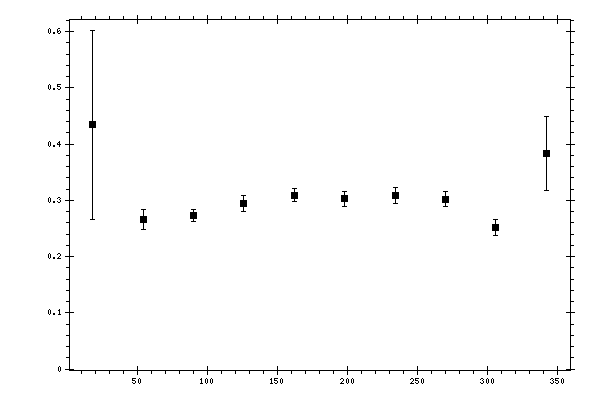

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.434396 | 0.168305 | 0.12415254 |
| 54 | 0.266715 | 0.0177951 | 0.02590564 |
| 90 | 0.273076 | 0.0103728 | 0.02518827 |
| 126 | 0.295072 | 0.0143731 | 0.02475356 |
| 162 | 0.309258 | 0.0110819 | 0.02395167 |
| 198 | 0.303092 | 0.0134368 | 0.02469705 |
| 234 | 0.30884 | 0.0139258 | 0.02346062 |
| 270 | 0.30245 | 0.0127354 | 0.02551084 |
| 306 | 0.252105 | 0.0137616 | 0.02564955 |
| 342 | 0.384224 | 0.0658061 | 0.05194196 |
