Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

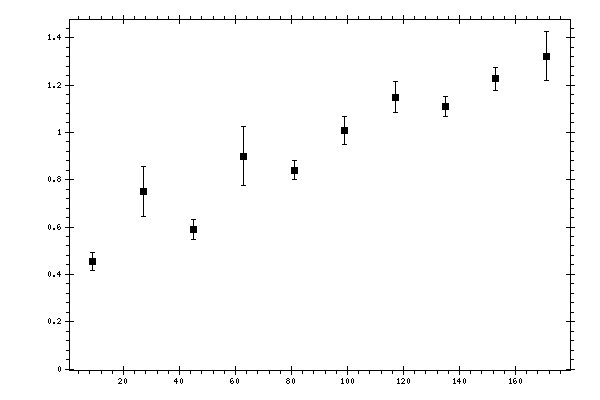

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.453607 | 0.0392939 | 0.12167623 |
| 27 | 0.748532 | 0.106086 | 0.14506076 |
| 45 | 0.587597 | 0.042284 | 0.11441454 |
| 63 | 0.898949 | 0.124459 | 0.31980036 |
| 81 | 0.839562 | 0.0396916 | 0.08566185 |
| 99 | 1.00866 | 0.0597833 | 0.11639756 |
| 117 | 1.14855 | 0.0664612 | 0.09950128 |
| 135 | 1.11043 | 0.0420375 | 0.08632171 |
| 153 | 1.226 | 0.0488531 | 0.09291355 |
| 171 | 1.32208 | 0.102286 | 0.14180153 |
