Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|

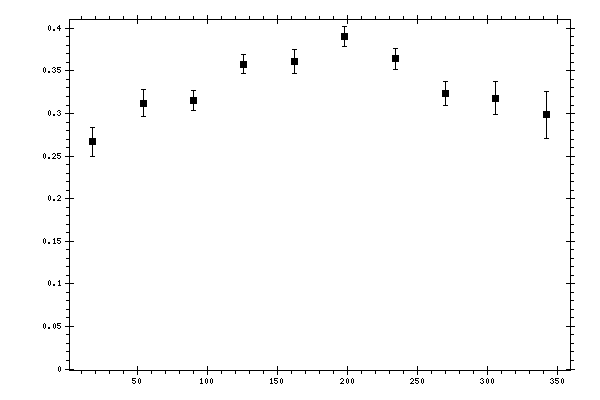

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.266843 | 0.0169789 | 0.04061977 |
| 54 | 0.311939 | 0.0157565 | 0.02975191 |
| 90 | 0.315838 | 0.0117888 | 0.02575417 |
| 126 | 0.357988 | 0.0110182 | 0.02831686 |
| 162 | 0.361296 | 0.0142596 | 0.02923297 |
| 198 | 0.390423 | 0.0118157 | 0.03041672 |
| 234 | 0.36422 | 0.0125373 | 0.02830012 |
| 270 | 0.323699 | 0.0144783 | 0.02533546 |
| 306 | 0.318081 | 0.019078 | 0.03601023 |
| 342 | 0.298781 | 0.027627 | 0.06270476 |
