Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|

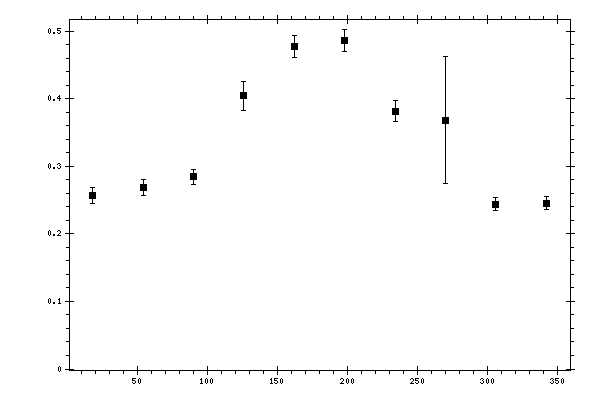

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.257045 | 0.0121742 | 0.03205 |
| 54 | 0.268881 | 0.0124254 | 0.02986469 |
| 90 | 0.284389 | 0.0107138 | 0.03721211 |
| 126 | 0.404634 | 0.0213284 | 0.03727269 |
| 162 | 0.477121 | 0.0164611 | 0.04615443 |
| 198 | 0.486867 | 0.0165013 | 0.04716078 |
| 234 | 0.381747 | 0.0156826 | 0.03728386 |
| 270 | 0.368495 | 0.0938412 | 0.0713824 |
| 306 | 0.24407 | 0.00949676 | 0.0294421 |
| 342 | 0.245547 | 0.00927653 | 0.03005718 |
