Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

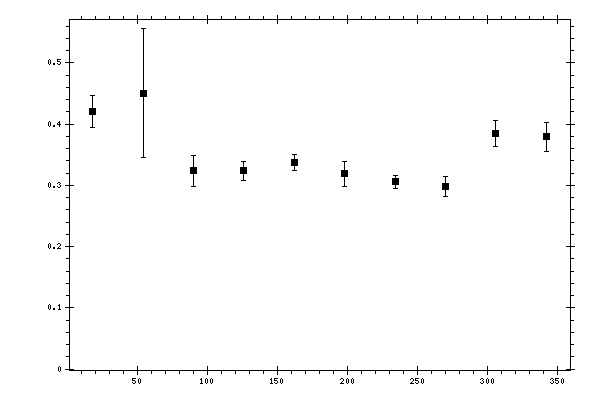

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.420593 | 0.0259344 | 0.05392984 |
| 54 | 0.450703 | 0.105804 | 0.08090012 |
| 90 | 0.323935 | 0.0253366 | 0.02870793 |
| 126 | 0.323824 | 0.0159875 | 0.02881946 |
| 162 | 0.33702 | 0.0129821 | 0.02561127 |
| 198 | 0.319279 | 0.0204832 | 0.03444314 |
| 234 | 0.305863 | 0.0109316 | 0.02333732 |
| 270 | 0.29836 | 0.0168815 | 0.02494033 |
| 306 | 0.384886 | 0.0209082 | 0.03395517 |
| 342 | 0.379445 | 0.0240257 | 0.0550174 |
