Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

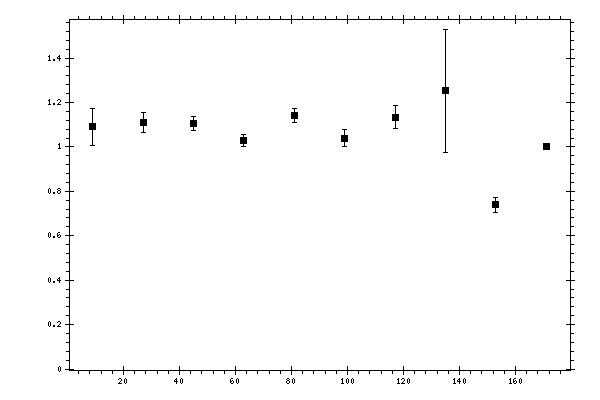

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.09031 | 0.0828718 | 0.09779257 |
| 27 | 1.10963 | 0.045297 | 0.0878242 |
| 45 | 1.10512 | 0.0308779 | 0.0876859 |
| 63 | 1.02769 | 0.0278886 | 0.0779372 |
| 81 | 1.13988 | 0.0312175 | 0.08336767 |
| 99 | 1.03836 | 0.0379275 | 0.07823889 |
| 117 | 1.13419 | 0.0509204 | 0.12340846 |
| 135 | 1.25179 | 0.278432 | 0.2473084 |
| 153 | 0.740028 | 0.0337774 | 0.31260505 |
| 171 | 1.00009 | 0.00860872 | 0.54300288 |
