Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|

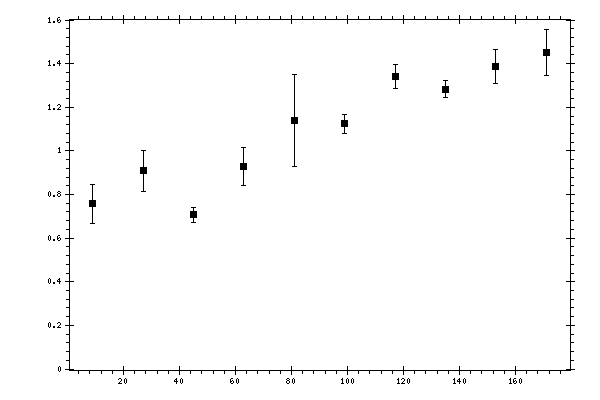

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.757409 | 0.0901574 | 0.15967418 |
| 27 | 0.908109 | 0.0931538 | 0.14079065 |
| 45 | 0.706612 | 0.0353058 | 0.09413328 |
| 63 | 0.929062 | 0.087044 | 0.13082851 |
| 81 | 1.1391 | 0.209724 | 0.16758463 |
| 99 | 1.12414 | 0.0436286 | 0.09210959 |
| 117 | 1.34133 | 0.0570669 | 0.10043955 |
| 135 | 1.28265 | 0.0387046 | 0.10281566 |
| 153 | 1.38727 | 0.0764896 | 0.1068824 |
| 171 | 1.44966 | 0.106077 | 0.13531748 |
