Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

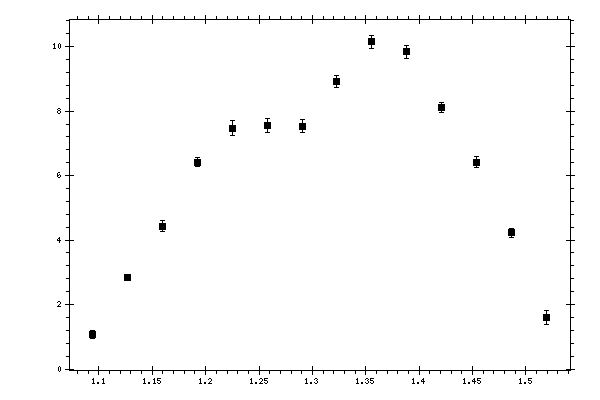

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09418 | 1.06538 | 0.123987 | 0.08519284 |
| 1.12687 | 2.84731 | 0.0758425 | 0.21899647 |
| 1.15955 | 4.43145 | 0.177893 | 0.31970374 |
| 1.19224 | 6.41657 | 0.147836 | 0.45693454 |
| 1.22492 | 7.46828 | 0.22687 | 0.56471434 |
| 1.25761 | 7.55437 | 0.225574 | 0.5705456 |
| 1.29029 | 7.53469 | 0.204992 | 1.22267164 |
| 1.32298 | 8.91172 | 0.18849 | 1.42919089 |
| 1.35566 | 10.1463 | 0.20998 | 1.14762932 |
| 1.38835 | 9.83726 | 0.213253 | 1.13000502 |
| 1.42103 | 8.11854 | 0.150026 | 0.96131924 |
| 1.45372 | 6.42049 | 0.168702 | 0.858703 |
| 1.4864 | 4.22727 | 0.137871 | 0.73999282 |
| 1.51909 | 1.59758 | 0.22427 | 0.60140399 |
