Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

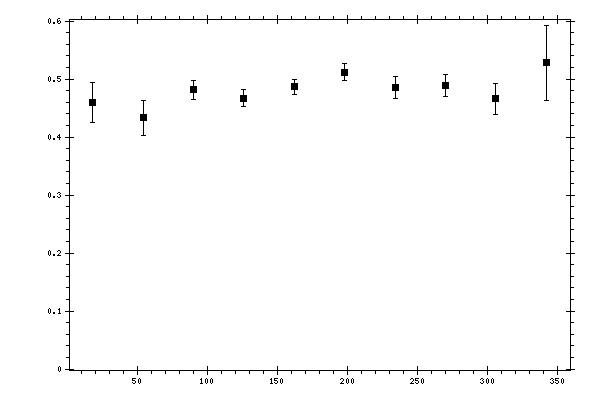

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.459487 | 0.0350263 | 0.06179927 |
| 54 | 0.433098 | 0.0295502 | 0.04057997 |
| 90 | 0.48138 | 0.0165663 | 0.03765178 |
| 126 | 0.467224 | 0.0142298 | 0.03627108 |
| 162 | 0.486663 | 0.0128668 | 0.03742058 |
| 198 | 0.511675 | 0.0148202 | 0.03764819 |
| 234 | 0.486079 | 0.019004 | 0.03773332 |
| 270 | 0.488996 | 0.0182057 | 0.04124602 |
| 306 | 0.46596 | 0.0267207 | 0.04453606 |
| 342 | 0.527863 | 0.0647019 | 0.08529649 |
