Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|

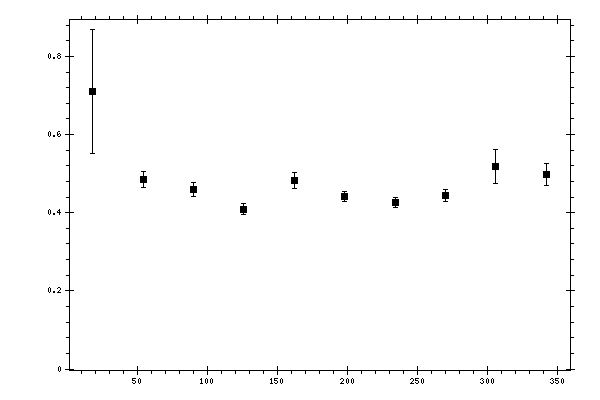

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.710595 | 0.158768 | 0.16032075 |
| 54 | 0.485481 | 0.019795 | 0.06445039 |
| 90 | 0.459171 | 0.0186813 | 0.04364378 |
| 126 | 0.40876 | 0.0143748 | 0.03206778 |
| 162 | 0.481953 | 0.0206731 | 0.03665948 |
| 198 | 0.441797 | 0.0129058 | 0.03295262 |
| 234 | 0.425843 | 0.0137262 | 0.03192941 |
| 270 | 0.444274 | 0.0159969 | 0.03553828 |
| 306 | 0.517565 | 0.0440398 | 0.05244814 |
| 342 | 0.497227 | 0.0280115 | 0.07853662 |
