Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

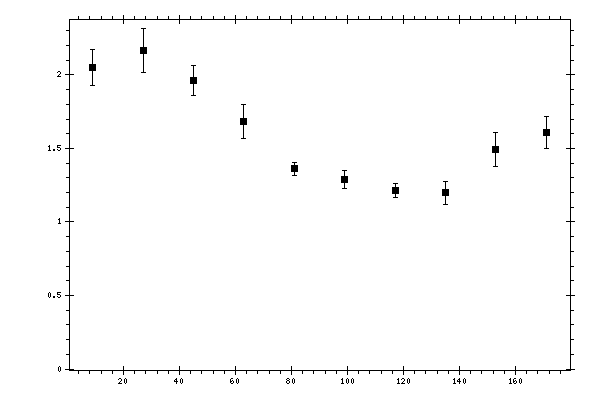

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 2.05352 | 0.122608 | 0.25759501 |
| 27 | 2.16559 | 0.148626 | 0.21366763 |
| 45 | 1.96013 | 0.103083 | 0.15834743 |
| 63 | 1.68652 | 0.115349 | 0.1855319 |
| 81 | 1.36134 | 0.0428365 | 0.1257649 |
| 99 | 1.28866 | 0.062087 | 0.11426476 |
| 117 | 1.21298 | 0.0460545 | 0.10685389 |
| 135 | 1.19769 | 0.0768627 | 0.127632 |
| 153 | 1.49354 | 0.115142 | 0.16535257 |
| 171 | 1.60649 | 0.108793 | 0.17754934 |
