Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

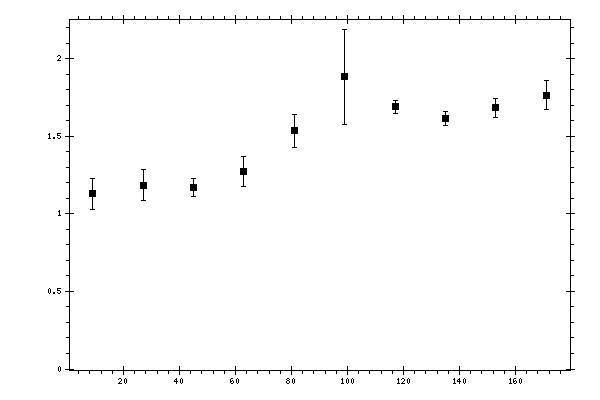

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.12904 | 0.101006 | 0.34404373 |
| 27 | 1.18467 | 0.101451 | 0.17690912 |
| 45 | 1.16877 | 0.0585167 | 0.14243915 |
| 63 | 1.27158 | 0.097076 | 0.14322935 |
| 81 | 1.53544 | 0.105358 | 0.12926767 |
| 99 | 1.88479 | 0.307228 | 0.27363265 |
| 117 | 1.69037 | 0.0422473 | 0.13485613 |
| 135 | 1.61772 | 0.0452002 | 0.28779791 |
| 153 | 1.68374 | 0.0604238 | 0.15116425 |
| 171 | 1.76464 | 0.0938582 | 0.14002131 |
