Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|

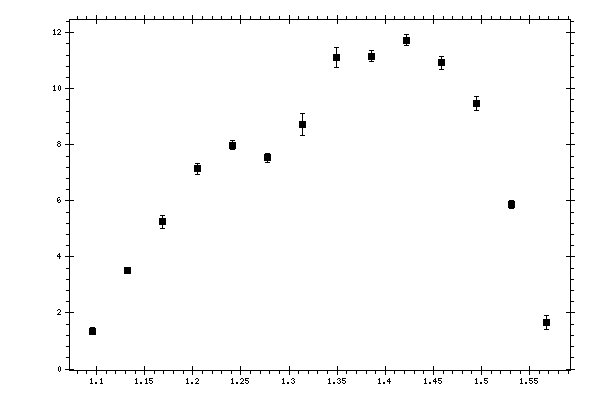

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09597 | 1.34512 | 0.128679 | 0.09967176 |
| 1.13223 | 3.51011 | 0.0796576 | 0.25105747 |
| 1.16848 | 5.24623 | 0.219184 | 0.37059728 |
| 1.20474 | 7.14082 | 0.187871 | 0.50006236 |
| 1.241 | 7.98794 | 0.161782 | 0.58198767 |
| 1.27725 | 7.53472 | 0.166577 | 0.550932 |
| 1.31351 | 8.73132 | 0.399377 | 0.71870995 |
| 1.34976 | 11.1049 | 0.354132 | 0.89036312 |
| 1.38602 | 11.1599 | 0.19321 | 1.16588868 |
| 1.42228 | 11.7313 | 0.188446 | 1.20142648 |
| 1.45853 | 10.923 | 0.230538 | 1.27449456 |
| 1.49479 | 9.48875 | 0.247348 | 1.18108688 |
| 1.53105 | 5.86573 | 0.135698 | 1.16018352 |
| 1.5673 | 1.67029 | 0.254296 | 0.78510304 |
