Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

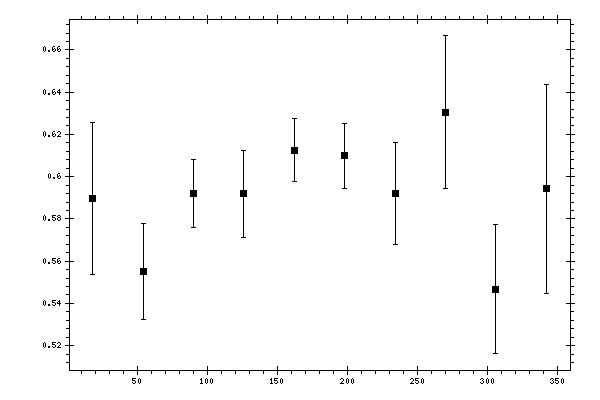

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.589592 | 0.0359706 | 0.09176173 |
| 54 | 0.555083 | 0.0227498 | 0.06629117 |
| 90 | 0.592186 | 0.0160979 | 0.04786545 |
| 126 | 0.591835 | 0.0204696 | 0.04435995 |
| 162 | 0.612515 | 0.0148723 | 0.04607879 |
| 198 | 0.609851 | 0.0153298 | 0.04511599 |
| 234 | 0.59212 | 0.0241774 | 0.04646722 |
| 270 | 0.630554 | 0.0361076 | 0.05568118 |
| 306 | 0.546828 | 0.0303507 | 0.06302283 |
| 342 | 0.594186 | 0.0495429 | 0.08895492 |
