Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|

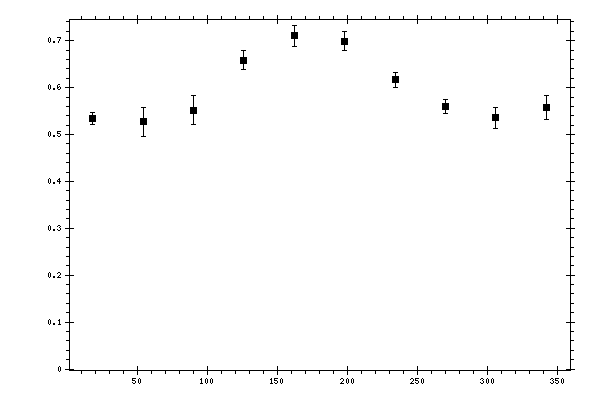

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.533718 | 0.0132298 | 0.06153365 |
| 54 | 0.526834 | 0.0305402 | 0.06202297 |
| 90 | 0.55223 | 0.0317298 | 0.05612945 |
| 126 | 0.658825 | 0.0195141 | 0.06539978 |
| 162 | 0.710153 | 0.0222894 | 0.06720542 |
| 198 | 0.699185 | 0.0202098 | 0.0691701 |
| 234 | 0.616571 | 0.0162733 | 0.06103481 |
| 270 | 0.559954 | 0.0146894 | 0.05533128 |
| 306 | 0.535945 | 0.0223417 | 0.06499098 |
| 342 | 0.557122 | 0.0256622 | 0.06539285 |
